Stewart NZ 6100 Tip Trailer

The Stewart NZ 6100 Tip Trailer is a durable, high-quality trailer built for versatility and heavy workloads. While Scottish-built, it incorporates significant Kiwi input to ensure it meets the demands of New Zealand terrain. Building on the success of the NZ 5500, the NZ 6100 features a longer 6.1 m body while retaining the 2.7 m bed width and increasing load capacity to 20 t. Its thoughtful design keeps the trailer manoeuvrable and stable, even when carrying a full load. Available with grain and silage sides for added versatility.

Capacity & Construction:

• 20 t carrying capacity, 26 t GVM
• Hardox steel body with 4 mm floor, 6.1 m long × 2.7 m wide

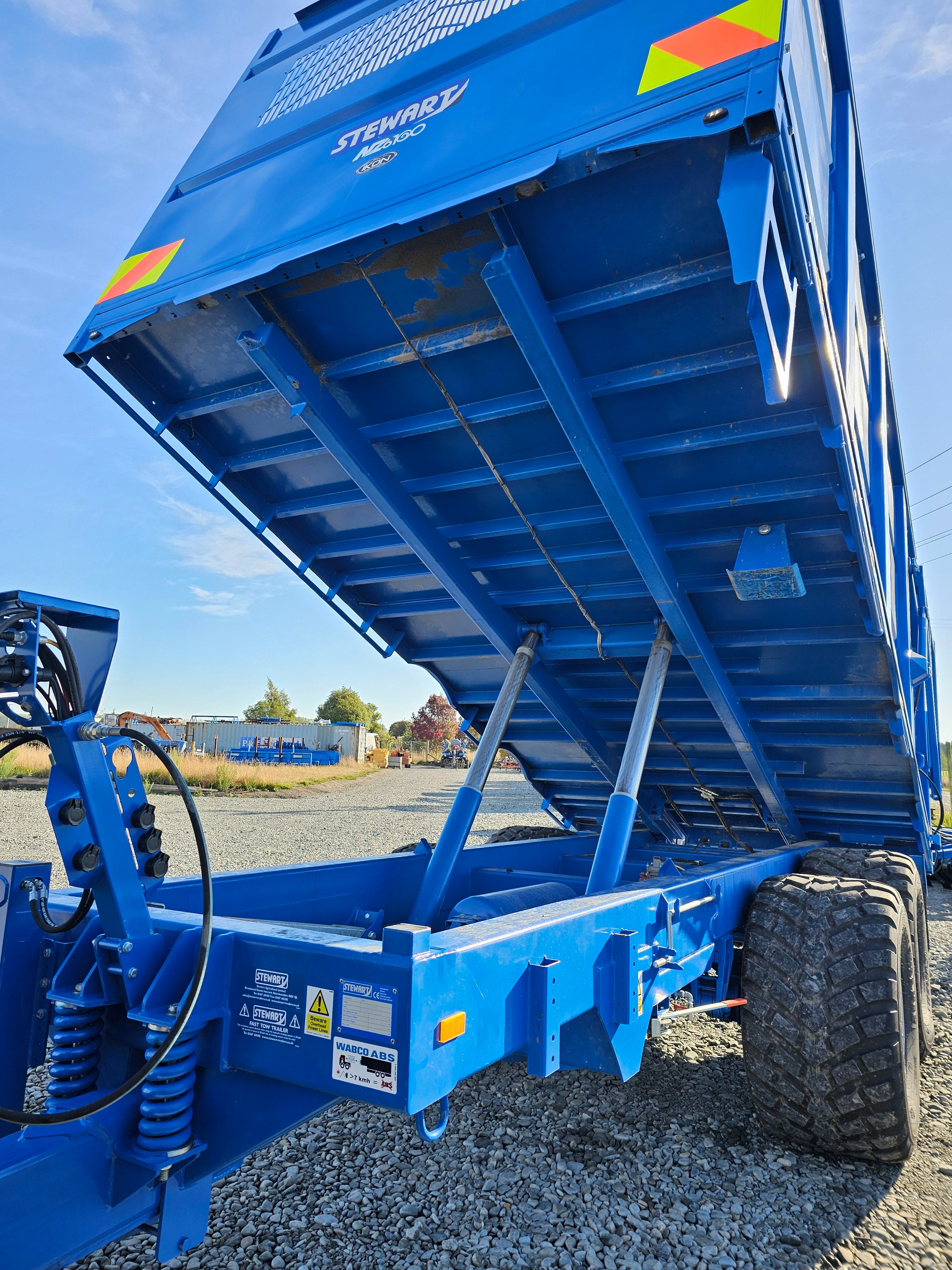

• 300 × 150 RHS chassis box section (top chassis 150 × 100)
• Twin underbody chrome rams
• Tandem sprung axles, 4 leaves per spring

Key Features:

• Hydraulic brakes with front mud flaps
• Sprung drawbar with swivel eye
• Commercial LED lights and flashing warning light
• 560/60 R22.5 BKT tyres (6,235 kg per tyre)
• Hydraulic jack stand

Optional Extras:

• Upgraded tyres

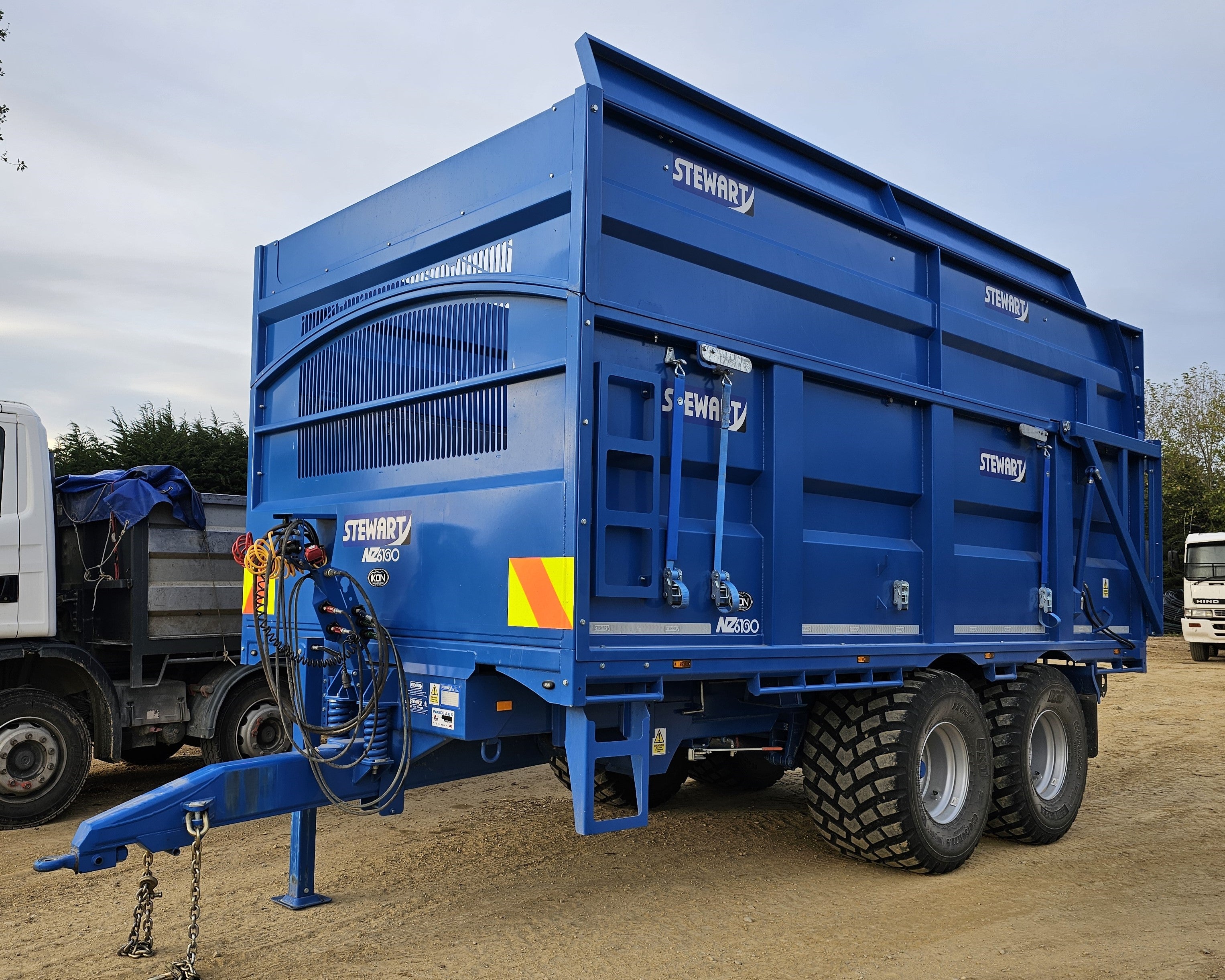

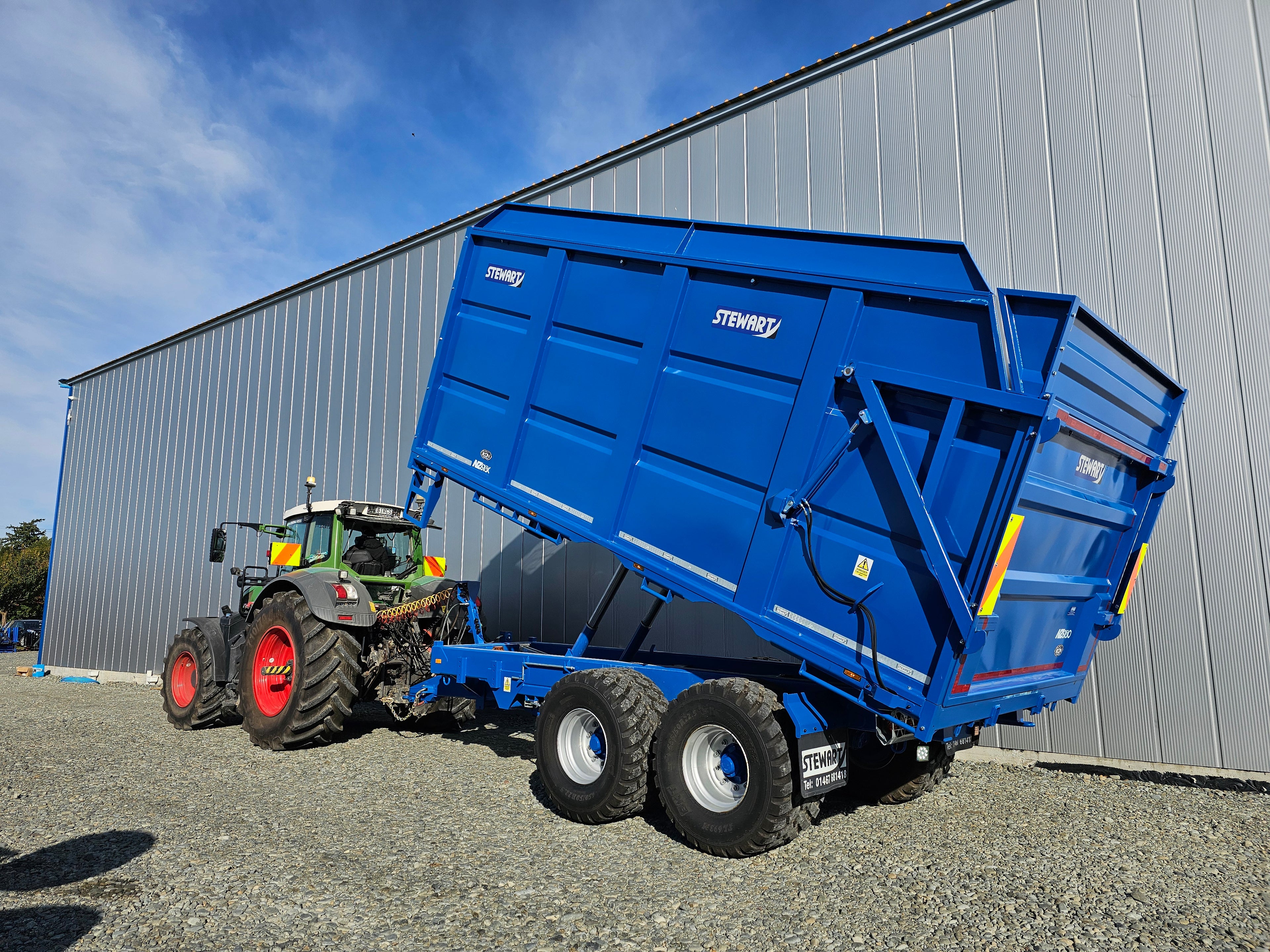

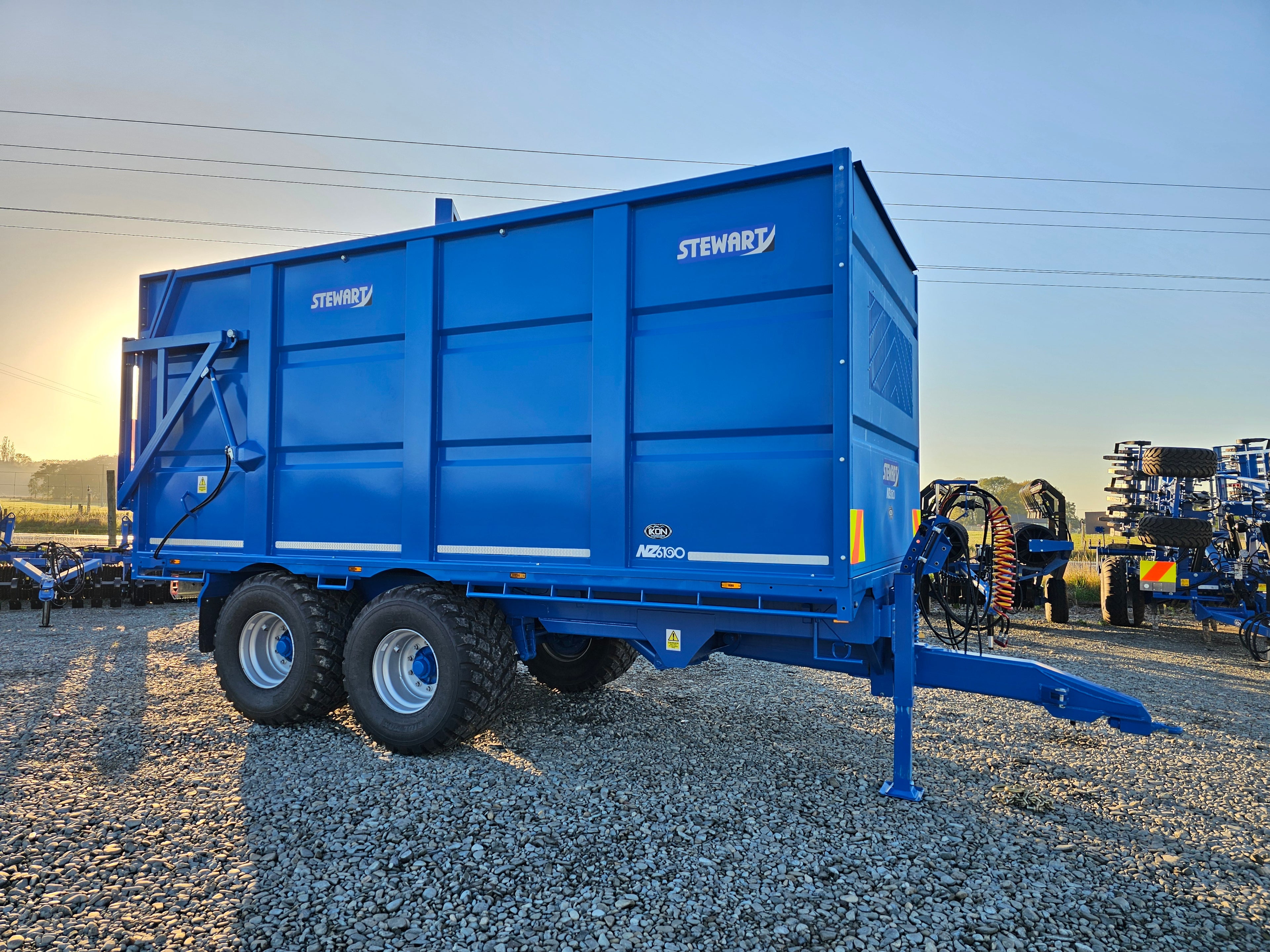

• Silage sides
• Grain sides & NZ grain chute
• Roll-over cover
• Hydraulic brake load sensing
• Air brakes
