Agriweld Assist

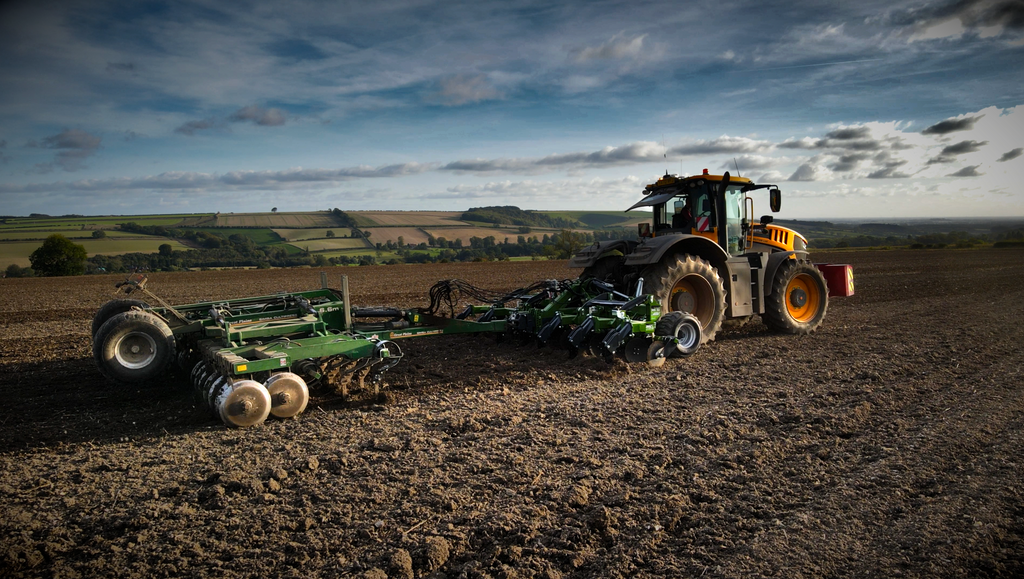

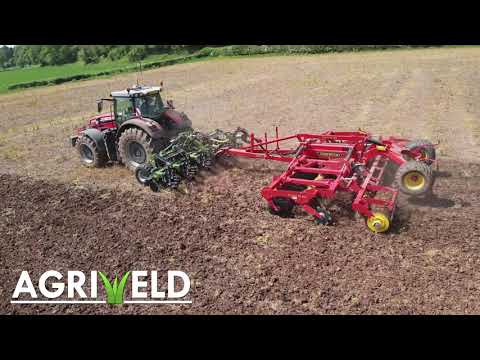

The Agriweld Assist low-disturbance toolbar lets you tow additional equipment, such as a drill or disc cultivator, for a one-pass system that reduces soil compaction in line with modern minimum-tillage practices—saving time, fuel, and labour.

Efficient Soil Work

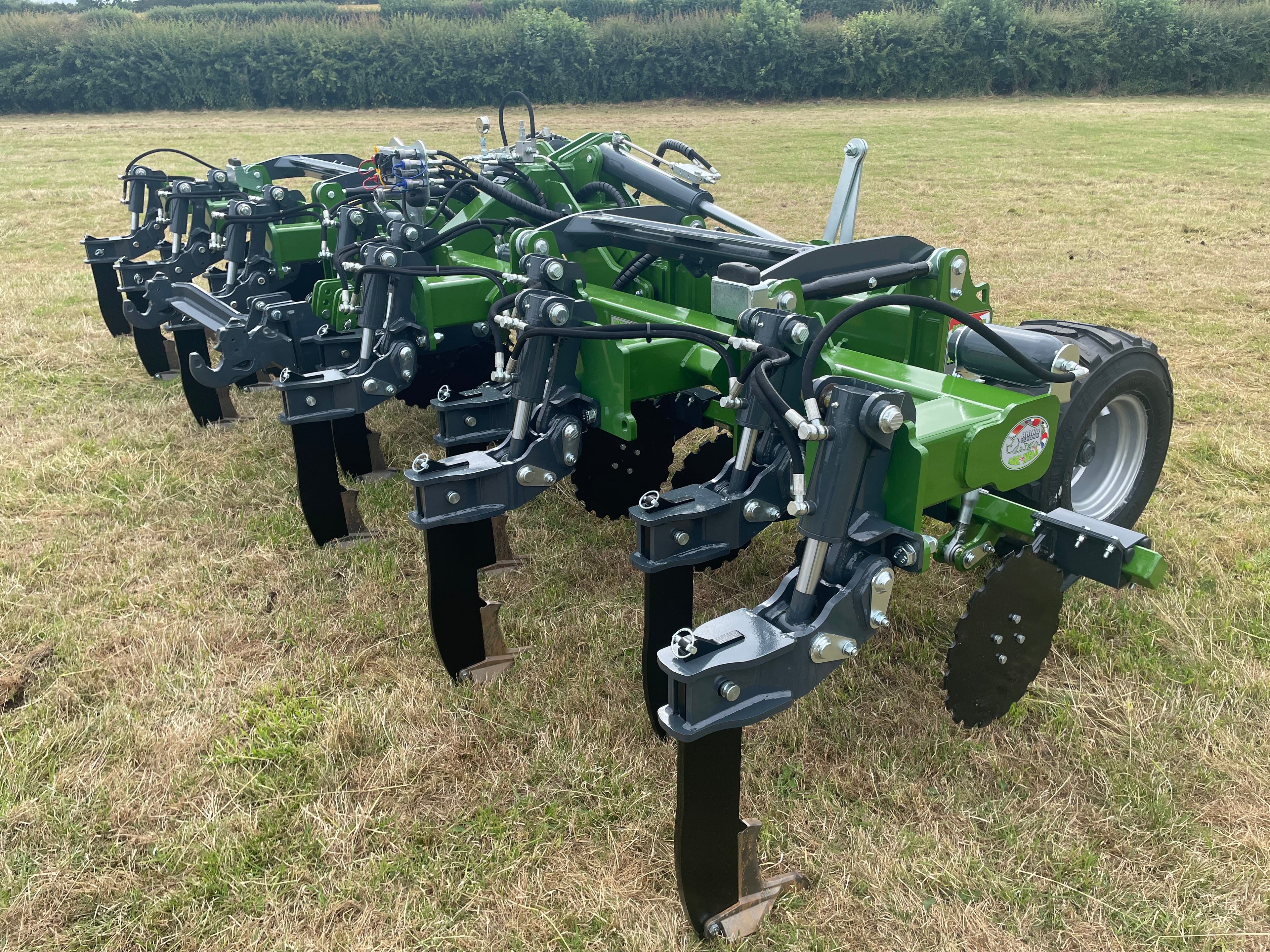

Low-disturbance legs and points work up to 300 mm deep. Angled wings lift and shatter soil across the full width, alleviating compaction and improving soil structure.

Tight Turn System
Available in 4, 5, and 6 m widths, the leg lift and wing folding operate on the same hydraulic service, allowing the trailed implement to pass safely under the machine on tight headland turns.

Depth Wheels
Height-adjustable, heavy-duty 790 mm diameter, 400 mm wide wheels provide maximum stability and prevent trailed attachments from ‘dipping’ when legs are lifted on headlands.

Leg Protection Options
Choose from three leg protection options: Shear-Bolt, Snap-Bar, or Auto-Reset, ensuring reliable performance in all conditions.

Features:

• 50mm towing clevis
• Low disturbance points
• Height adjustable depth wheels
• Hydraulic ‘tap’ locks for transport

Optional Extras:

• Lower Cat 3 Walterscheid hooks
• ISOBUS extension harness
• 5th double acting hydraulic service
