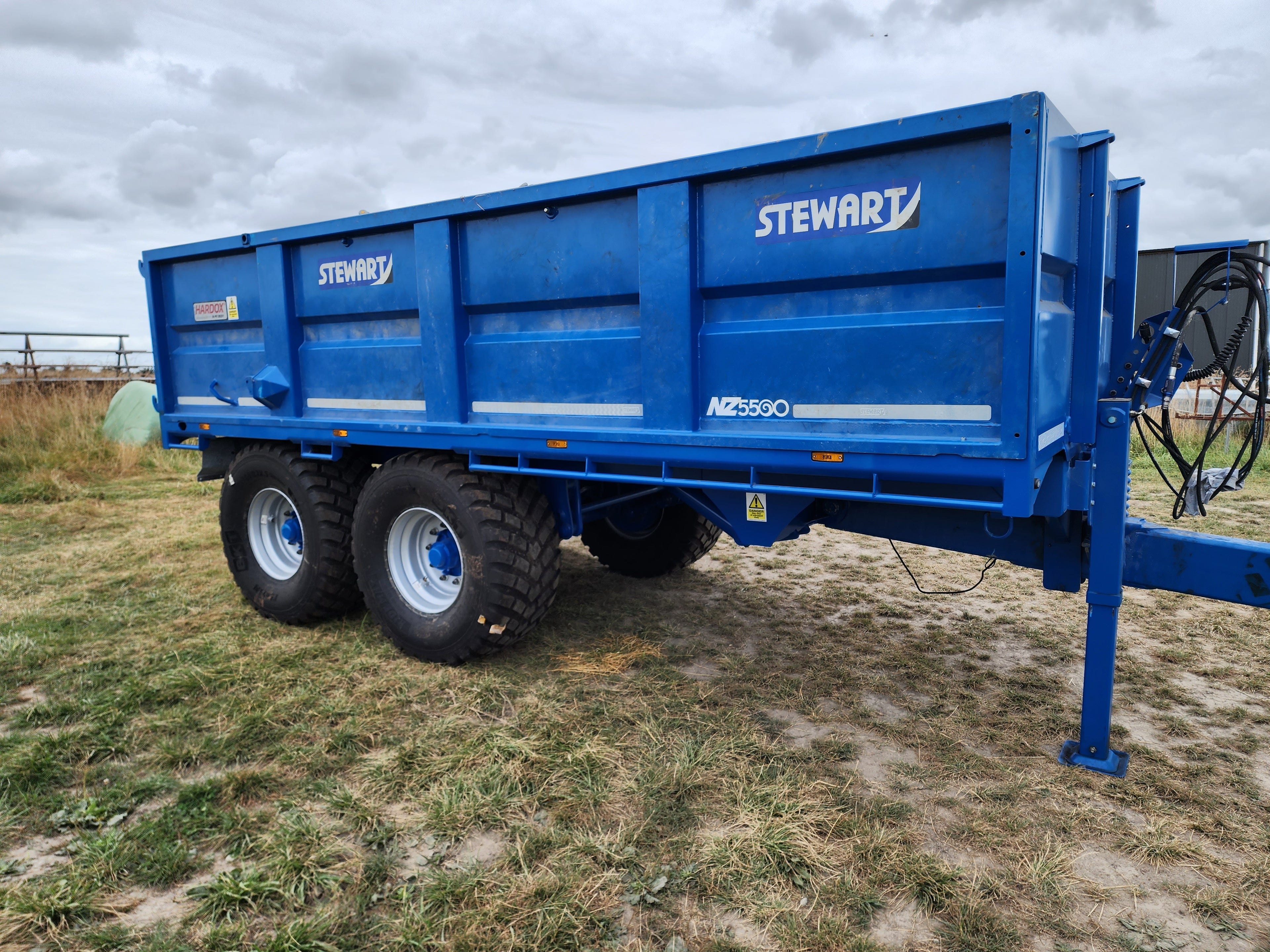

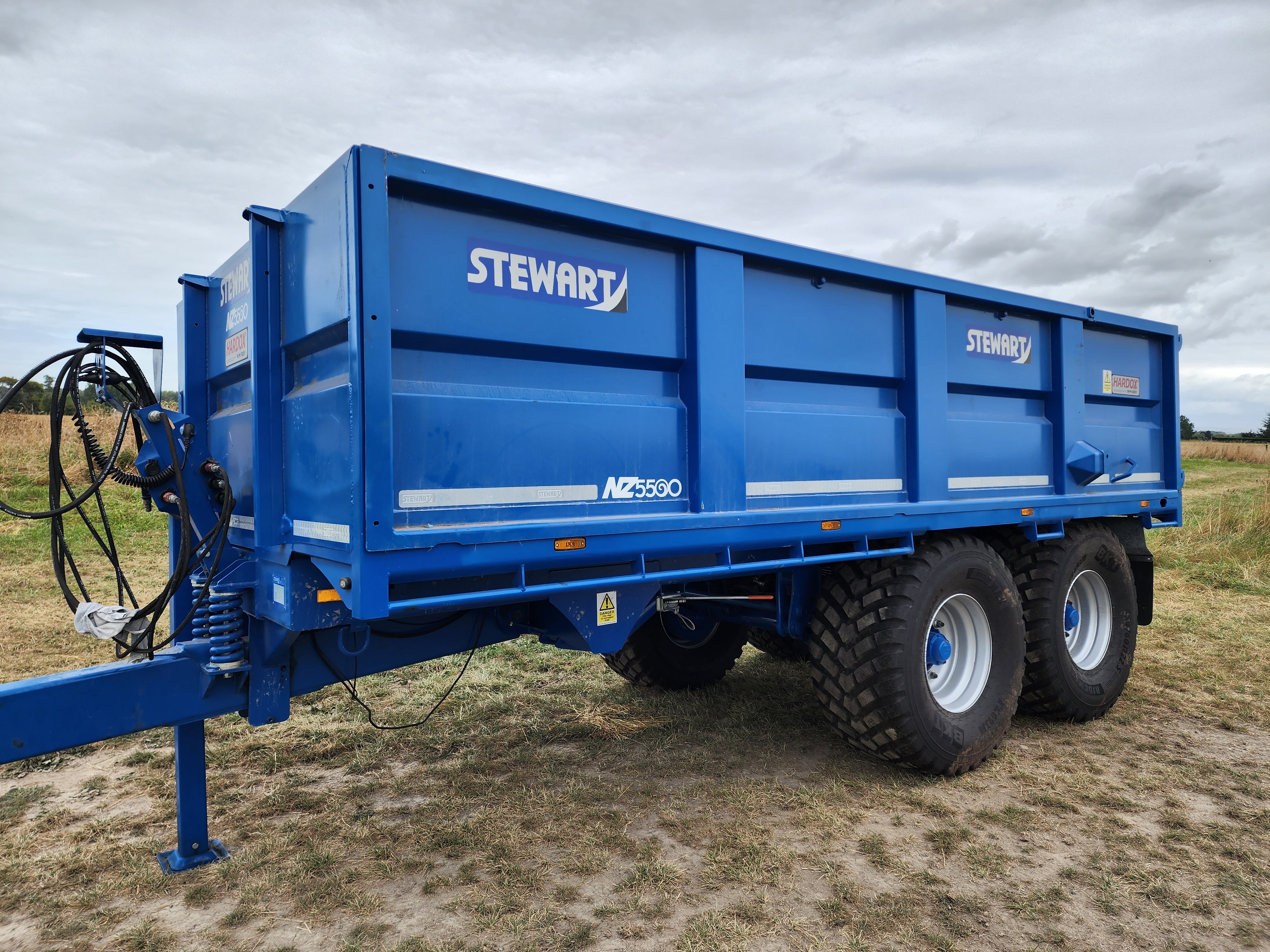

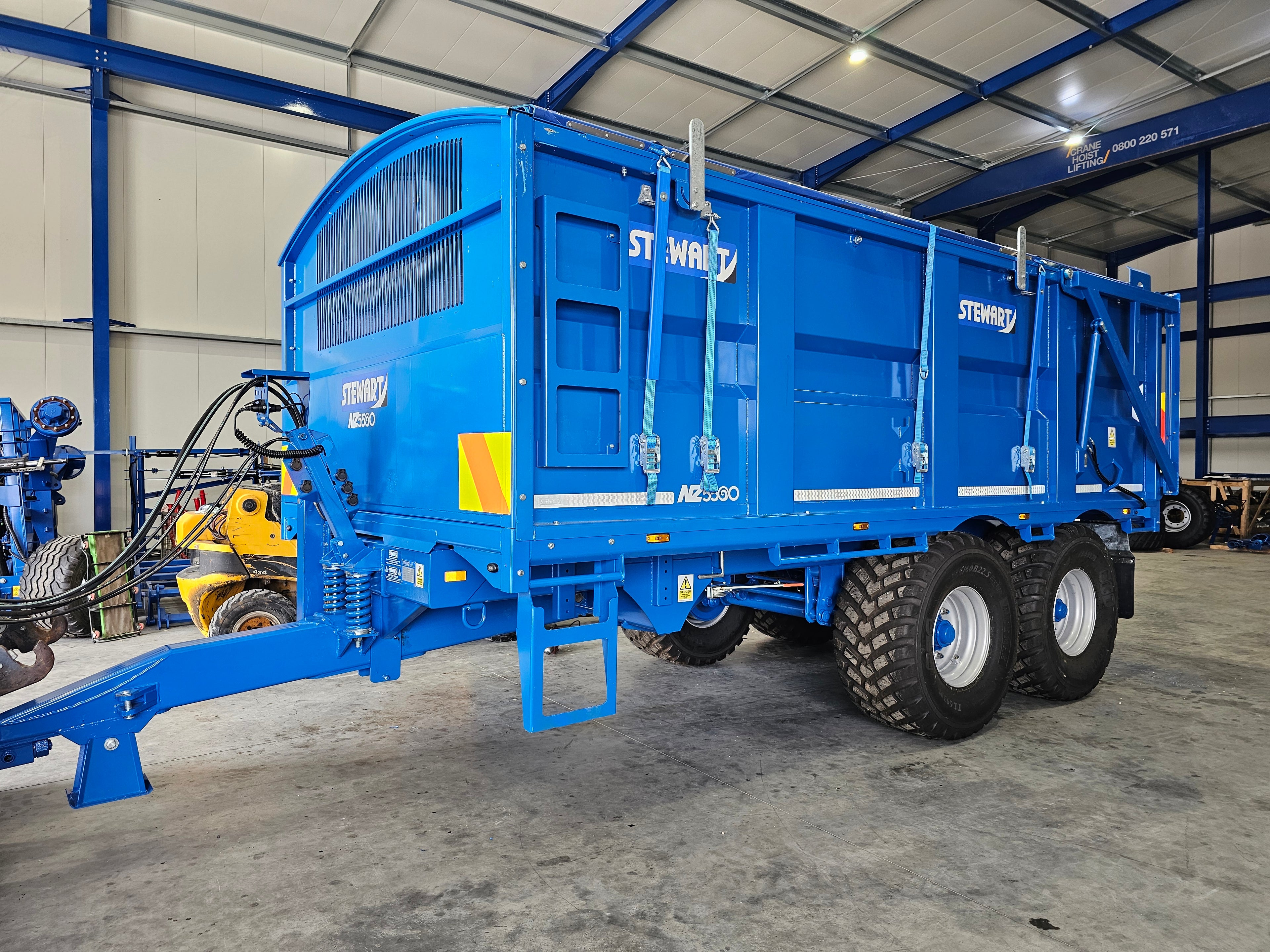

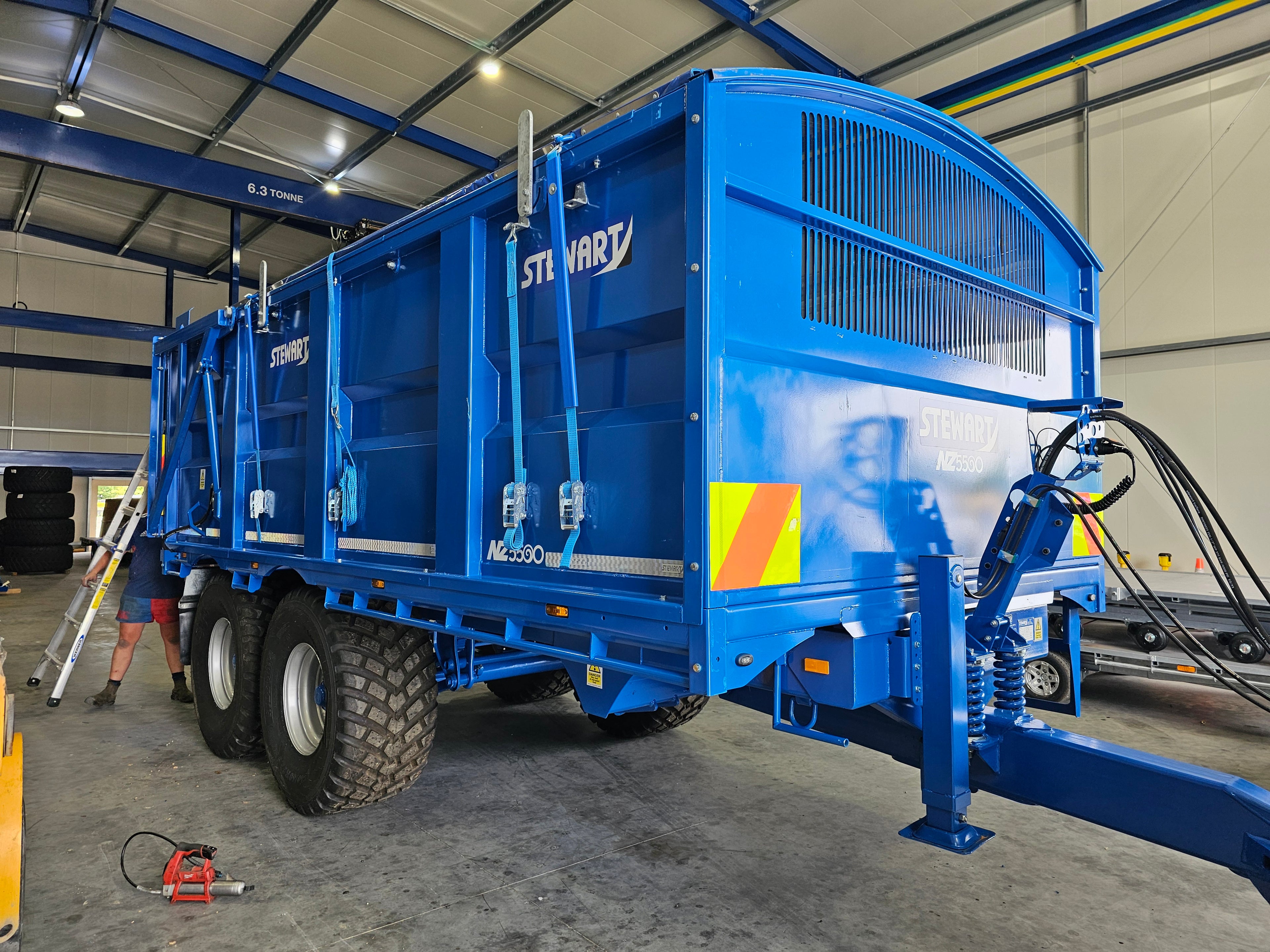

Stewart NZ 5500 Tip Trailer

Stewart Trailers, established in 1988 in the Scottish Midlands, has built a reputation for exceptional craftsmanship and bespoke trailer designs. The Stewart NZ 5500 Tip Trailer, specifically designed for the New Zealand market, combines versatility with strength. Its long deck, fixed headboard, and options for hay extensions, silage bins, gravel, and grain sides make it a highly adaptable trailer for a variety of farming needs.

Capacity & Construction:

• 16 t carrying capacity, 21 t GVM
• Hardox steel body with 4 mm floor, 5.5 m long × 2.7 m wide
• 250 × 150 RHS chassis box section (top chassis 150 × 100)
• Hardox sides
• Twin underbody chrome rams
• Tandem sprung axles, 4 leaves per spring

Key Features:

• Hydraulic brakes with front mud flaps
• Sprung drawbar with swivel eye
• Commercial LED lights, flashing warning light, and automatic rear work lights
• Hydraulic jack stand
• 560/60 R22.5 BKT tyres (6,235 kg per tyre)

Optional Extras:

• Upgraded tyres
• Silage sides
• Grain sides & NZ grain chute
• Roll-over cover
• Hydraulic brake load sensing
• Air brakes
