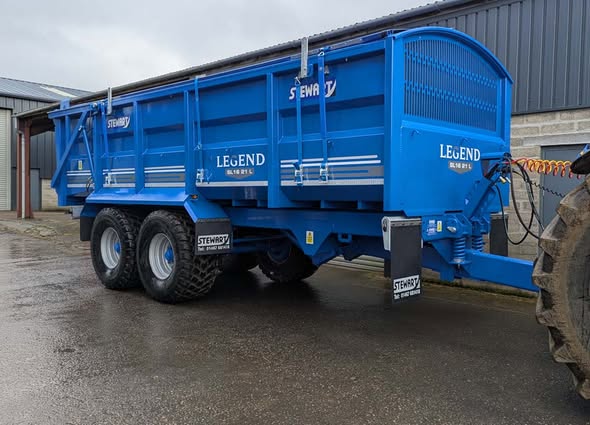

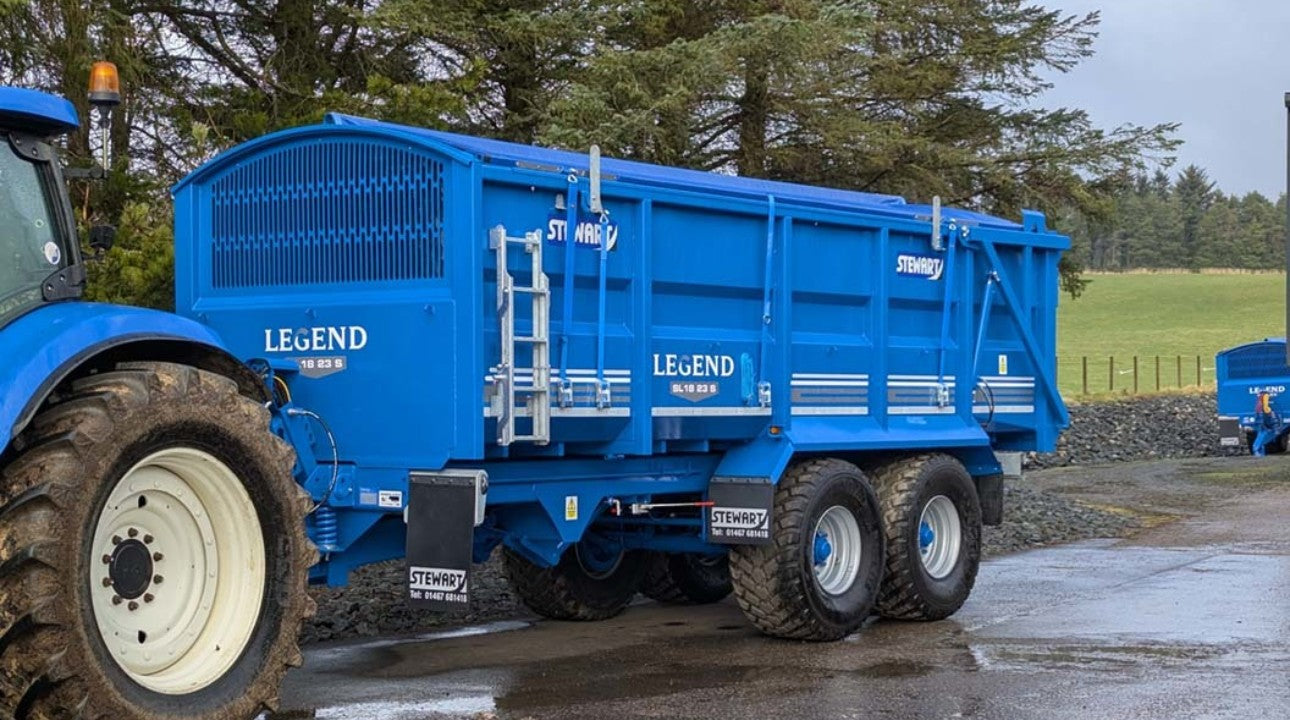

Stewart Legend Trailer
Built for heavy-duty transport, the Stewart LEGEND Tip Trailer offers an 11–25 tonne carrying capacity with a robust chassis and sided box section. Features include a hydraulic up-and-over tailgate, twin underbody chrome rams, tandem sprung axles (4 leaf per spring), hydraulic brakes, commercial LED lights with 6 side indicators, and a sprung drawbar with swivel eye.
Optional Extras:
- Upgrade tyres
- Grain & silage sides
- NZ grain chute
- Full-width front arch window
- Hydraulic jack
- Air brakes & ABS
- Hydraulic fold-down sides
- Hydraulic brake load sensing
- Manual or hydraulic rollover cover
- Pro Series upgrade with full Hardox body
| GX 16 21 S | GX 18 23 S | |
| Carrying capacity (kg): | 16,000 | 20,000 |
| Unladen weight (kg): | 5,400 | 5,900 |
| Cubic capacity - Grain (m³): | 21 | 23 |
| Cubic capacity - Silage (m³): | 35 | 39 |
| Height to top rail (mm): | 2850 | 2850 |
| Tipped height (mm): | 6650 | 7150 |
| Body (mm): | 6100x2450x1500 | 6700x2450x1500 |
| Chassis: | 250x150 box section | 250x150 reinforced box section |
| Axles (mm): | 125 Ø 10 stud, 420x180 brakes | 125 Ø 10 stud, 420x180 brakes |
| Suspension: | Mechanical suspension with 4 leaf springs | Mechanical suspension with 4 leaf springs |
| Tipping mechanism: | Twin 3 stage 4.25” Ø chrome plated tipping rams | Twin 3 stage 4.25” Ø chrome plated tipping rams |
