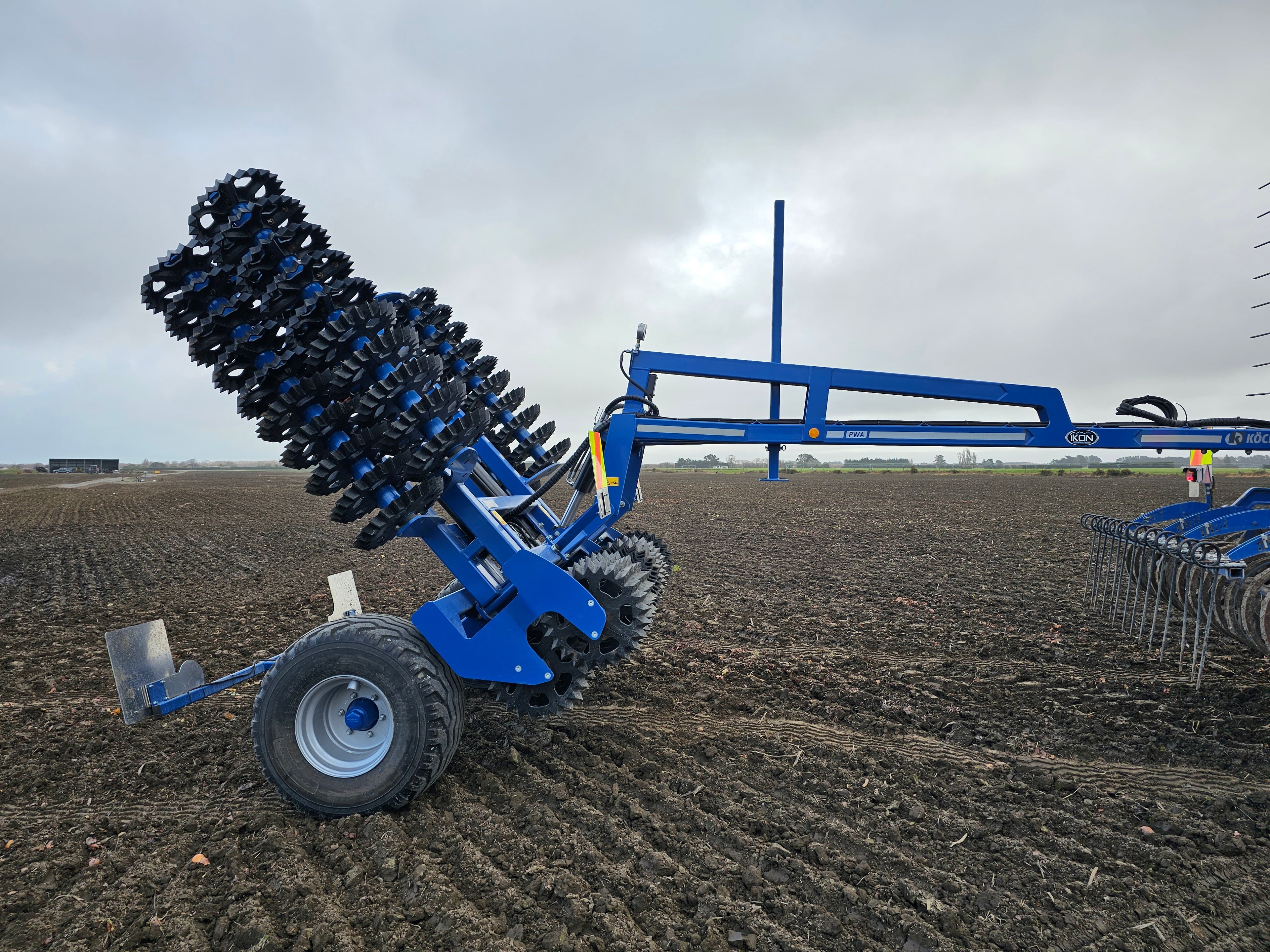

Köckerling PWA
The Köckerling PWA is a versatile cultivator designed for efficient soil preparation, available in 5.00 m, 6.40 m, 6.80 m, and 8.20 m working widths. The PWA 500/680 can be extended from 5.00 m to 6.80 m, while the PWA 640/820 extends from 6.40 m to 8.20 m. Its 3-section folding design makes transport simple and convenient.
A double staggered prism roller and 2-row offset design ensure a high passage rate, uniform reconsolidation through hydraulic loading of the side sections, good self-cleaning, and optimum soil crumbling with polygon ring rollers. The PWA is also ideal for solo use for subsequent rolling.
Optional Extras:
- Hydraulic brakes
- Rubber-mounted panels & LED lights
- ‘High hitch’ drawbar with hydraulic hoses & couplings
| PWA 500 | PWA 680 | PWA 640 | PWA 820 | |
| Working width (m): | 5.00 | 6.40 | ||
| with extension (m): | 6.80 | 8.20 | ||
| Transport width (m): | 2.90 | 2.90 | 2.90 | 2.90 |
| Transport height (m): | 2.62 | 3.35 | 3.20 | 3.93 |
| Ring count: | 55 | 75 | 71 | 91 |
| Ring spacing (cm): | 11 | 11 | 11 | 11 |
| Ring diameter (mm): | 540 | 540 | 540 | 540 |
| Weight (kg): | 3,000 | 3,650 | 3,490 | 4,140 |
